Product Description:

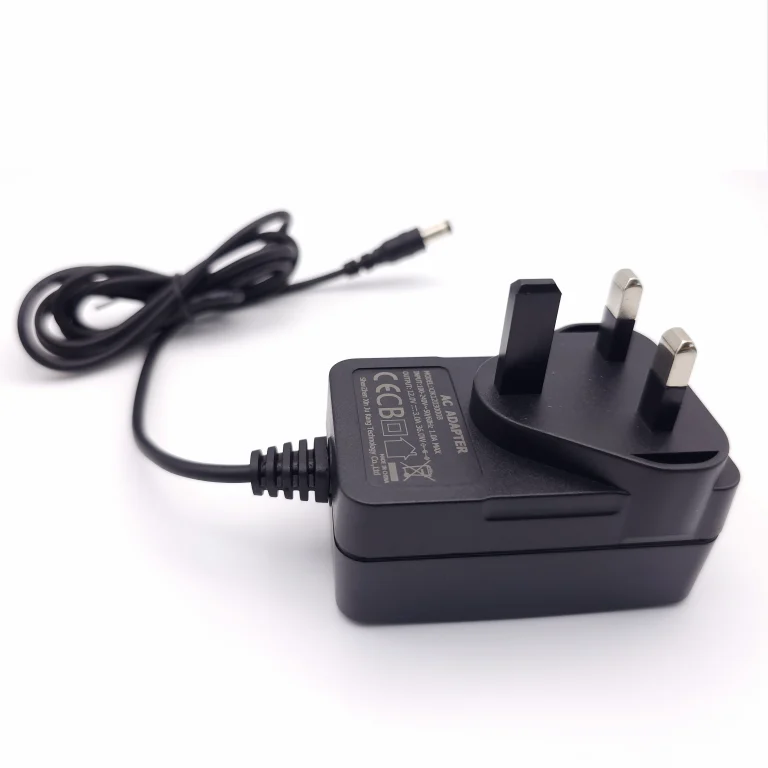

This 36W medical power adapter delivers 12V 3A output with a UK plug. Compliant with IEC/EN 60601-1, it provides reliable and high-power output for patient monitoring systems, portable diagnostic instruments, and advanced home healthcare devices.
Input Connector/Plug Type
Output Connector
Rated Power
Output Voltage
Output Current
Model
Safety Standards
Provides regulated 12V DC output with up to 3A current capacity for medical equipment requiring reliable 36W power.
Designed for medical equipment applications with electrical isolation and low leakage current requirements.
The enclosed external adapter keeps AC-DC power conversion outside the medical device, helping simplify internal system design and thermal management.
Designed for reliable long-duration operation in medical monitoring, diagnostic, and healthcare equipment.
Supplied with a UK plug configuration for equipment intended for the UK market, with other regional plug options available for OEM projects.
Output voltage, current, connector, cable length, plug configuration, labeling, and other specifications can be customized.
| Parameter | Specification |
|---|---|
| Rated Power | 36W |
| Output Voltage | 12V DC |
| Output Current | 3A |
| Input Voltage | 90–264VAC* |
| Input Frequency | 47–63Hz* |
| Output Type | Regulated DC |
| DC Connector | DC5521* |
| AC Plug | UK Plug |
| Isolation Voltage | 4,000VAC* |
| Protection | OCP / OVP / SCP* |
| Operating Temperature | 0°C to +40°C* |
| Safety Standard | IEC/EN 60601-1* |
| EMC Standard | IEC/EN 60601-1-2* |
Designed to keep patient leakage current within IEC 60601-1 safety limits for medical applications.
Provides tightly regulated DC output with minimal voltage fluctuation under varying load conditions.
Compact enclosure design optimized for integration into portable and space-constrained medical equipment.
Complies with IEC/EN 60601-1 safety standards for medical electrical equipment, including 2×MOPP isolation requirements.
IEC 60601-1 and IEC 62368-1 follow different safety principles and apply to different equipment. This guide explains how intended use, patient protection, isolation, and leakage current affect standard selection and power supply requirements.
What does 2×MOPP really mean in IEC 60601-1? Learn how patient protection differs from Class I and Class II equipment, why 2×MOPP is required for many medical power supplies, and what engineers should look for when selecting a compliant power solution.
MTBF calculation and MTBF testing are two different approaches for evaluating power supply reliability. This article explains their differences, methods, advantages, limitations, and how OEM engineers choose the right reliability verification approach for industrial and medical applications.
Understand IEC 60601-1 requirements for medical power supplies including MOPP, leakage current, and isolation voltage. A key guide for selecting compliant power supplies for patient monitors and medical devices.
A 36W medical power adapter is an external AC-DC power supply designed to provide regulated power to medical and healthcare equipment. This model provides 12V DC output at up to 3A.
It is suitable for applications such as patient monitoring equipment, portable diagnostic devices, ECG systems, physiological monitoring equipment, and compact laboratory instruments.
The 36W model provides additional power capacity, making it suitable for medical devices integrating multiple functions such as displays, sensors, signal processing, and communication modules.
Yes. Its 12V 3A output and medical-grade design make it suitable for patient monitoring applications when the equipment’s electrical and safety requirements match the adapter specifications.
Yes. XJK Power can provide different regional AC plug configurations, including US, EU, UK, and AU options, for OEM projects.
Yes. XJK Power supports OEM and ODM customization of output voltage, current, DC connector, cable length, plug configuration, labeling, and other specifications.
We provide OEM&ODM customization for output voltage, current , connector, cable length, labeling and packaging .
Our engineering team is ready to support your medical power supply requirements.
