Medical Power Supply Solution for Radiofrequency Electrosurgical Devices

Radiofrequency (RF) electrosurgical devices are widely used in general surgery, dermatology, gynecology, dental procedures, ENT, and veterinary applications. These systems generate high-frequency electrical energy to cut tissue and achieve precise coagulation while minimizing bleeding.

Unlike conventional medical equipment, electrosurgical generators require highly stable DC power with reinforced isolation, low leakage current, and excellent electromagnetic compatibility. Any voltage instability or excessive ripple may affect RF output quality, surgical precision, and overall system reliability.

This case study explains the key power supply requirements for modern RF electrosurgical equipment and demonstrates how XJK POWER helps OEM manufacturers design safe, reliable, and IEC 60601-1 compliant power solutions.

Project Overview

An OEM manufacturer developing a compact radiofrequency electrosurgical generator required a medical-grade desktop power supply capable of supporting continuous surgical operation while meeting international medical safety standards.

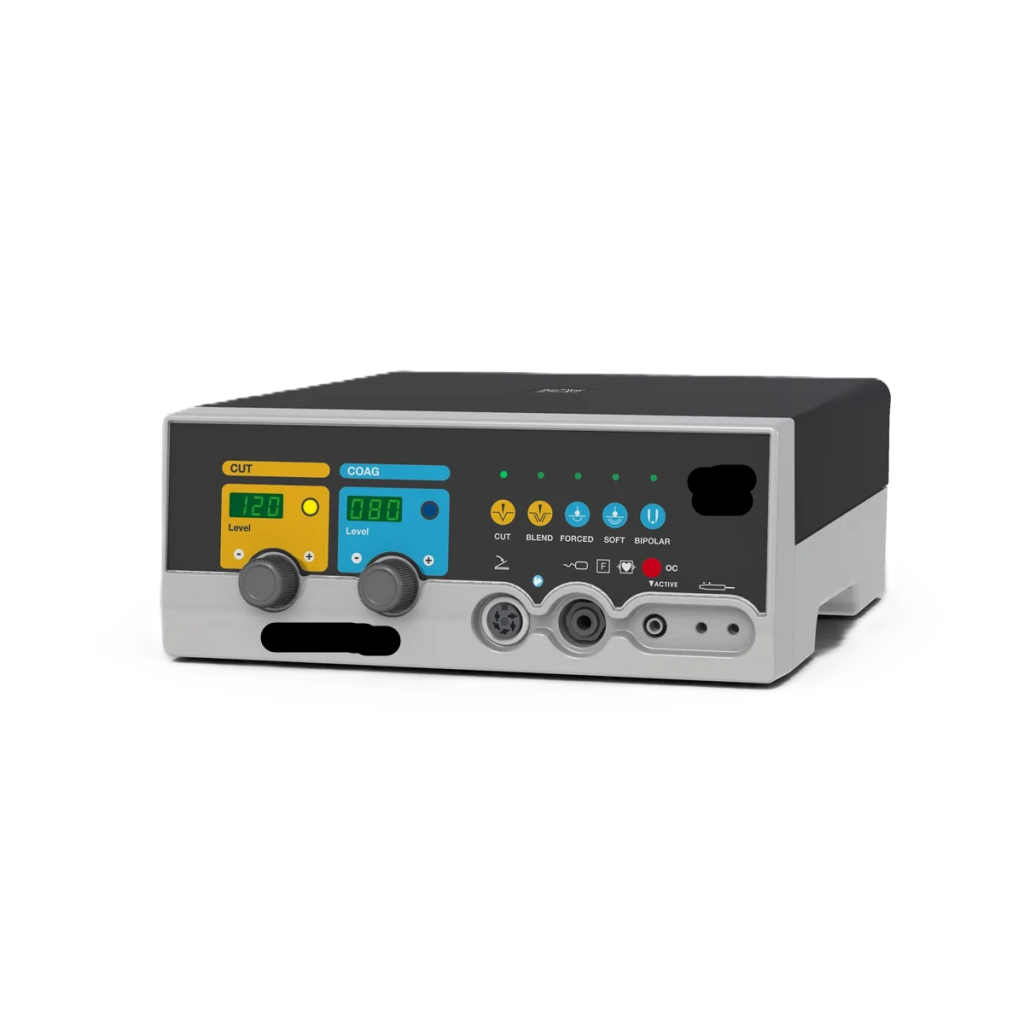

The equipment integrates monopolar and bipolar operating modes, digital control circuitry, and high-frequency RF generation. The external AC/DC adapter must provide stable power under demanding operating conditions without introducing excessive electrical noise.

Item	Specification
Application	RF Electrosurgical Generator
Device Type	Monopolar & Bipolar Surgery System
Input Voltage	100–240VAC
Output Voltage	24VDC (Typical OEM Design)
Rated Output Power	120W
Safety Standard	IEC 60601-1 2×MOPP
Leakage Current	Medical Grade
Efficiency	DOE Level VI
Cooling	Natural Convection
Installation	Desktop External Adapter
Operating Mode	Continuous Surgical Operation

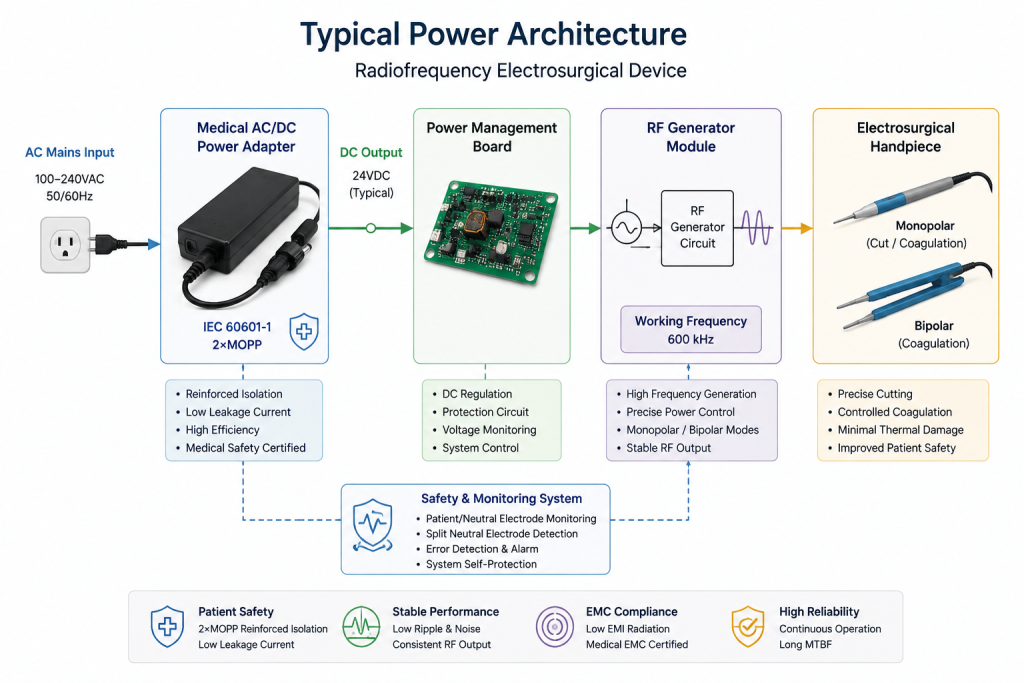

Typical Power Architecture

Customer Challenge

table RF Performance

The RF generator requires a highly stable DC input to maintain consistent cutting and coagulation performance.

Electrical Safety

Because the equipment operates in direct contact with patients, reinforced isolation and ultra-low leakage current are mandatory.

Electromagnetic Compatibility

High-frequency RF circuits generate significant electromagnetic interference, requiring the power supply to maintain excellent EMC performance.

Continuous Operation

The adapter must support long surgical procedures without thermal shutdown or output instability.

XJK Engineering Solution

IEC 60601-1 Certified Medical Adapter

Designed with 2×MOPP isolation to meet international medical safety requirements.

Stable DC Output

Low ripple and fast transient response ensure stable RF generation throughout surgical procedures.

High Reliability

Industrial-grade components and optimized thermal design support continuous operation with high MTBF.

Compact Desktop Design

External adapter simplifies equipment certification while reducing internal heat generation.

How We Develop a Custom Power Supply

Our engineering process helps device manufacturers move efficiently from requirement definition to production-ready power solutions.

Step1
Requirement
Review

Review voltage, current, connector, plug type, installation environment, and medical device requirements.

Step2
Engineering
Evaluation

Electrical feasibility assessment, connector matching, and product configuration planning.

Step3
Prototype
Development

Prototype recommendation or customized sample preparation based on project requirements.

Step4
Compliance &
Validation

Review safety expectations, EMC considerations, and application-specific requirements.

Step5
Sample
Approval

Functional verification and customer-side evaluation before production.

Step6
Production &
Delivery

OEM production support for customized healthcare power solutions.

Technical Design Considerations

1. Reinforced Patient Protection

Double isolation between AC mains and patient-connected circuitry.

2. Low Leakage Current

Designed to meet stringent medical leakage current limits.

3. Low Ripple & Noise

Minimizes RF instability and improves cutting precision.

4. EMC Performance

Complies with medical EMC requirements while reducing conducted and radiated emissions.

5. Thermal Reliability

Optimized efficiency reduces heat generation during extended operation.

6. Long Product Lifetime

Designed for years of continuous clinical use.

Project Result

Following prototype validation, the OEM successfully integrated the medical power adapter into its RF electrosurgical platform. The solution delivered stable output under continuous operation, simplified system certification, and improved overall thermal performance.

Key project outcomes included:

Stable DC power for RF generator operation
Reduced electrical noise during high-frequency output
Compliance-ready medical safety architecture
Faster OEM integration and validation
Reliable long-term operation in clinical environments

120W Medical Desktop Adapter

Ideal for medium-power RF surgical generators requiring stable continuous output.

Learn More →

Custom Medical Power Supply

Customized output voltage, connector, cable length, certifications, and enclosure design for OEM projects.

Learn More →

FAQ

1. Why do radiofrequency electrosurgical devices require medical-grade power supplies?

Radiofrequency electrosurgical devices operate at high frequencies to perform precise tissue cutting and coagulation. To maintain stable RF output and ensure patient safety, the power supply must provide reinforced electrical isolation, ultra-low leakage current, and consistent DC output.

Medical-grade power supplies certified to IEC 60601-1 help reduce electrical risks, improve system reliability, and simplify compliance with international medical safety requirements.

2. What output voltage is commonly used in RF electrosurgical equipment?

The required output voltage depends on the internal power architecture of the electrosurgical system. Many OEM designs use 24VDC as the primary power source, while higher-power systems may require 36VDC or 48VDC before internal DC/DC conversion and RF generation.

XJK POWER provides standard and custom medical power adapters with multiple output voltages to match different electrosurgical platform designs.

3. Why is low ripple and noise important for RF surgical generators?

High-frequency electrosurgical generators are sensitive to fluctuations in their DC input. Excessive ripple or voltage instability can affect RF waveform quality, resulting in inconsistent cutting performance, unstable coagulation, or increased electromagnetic interference.

A medical-grade adapter with low ripple and fast transient response helps ensure stable RF energy delivery and consistent surgical performance during continuous operation.

4. Can XJK POWER customize power supplies for electrosurgical equipment?

Yes. We provide OEM and ODM medical power solutions tailored to the requirements of electrosurgical device manufacturers. Customization options include output voltage and current, connector type, cable length, enclosure design, labeling, regional AC plugs, and medical safety certifications.

Our engineering team works closely with customers to develop reliable power solutions that integrate seamlessly into RF surgical systems while meeting IEC 60601-1 safety and performance requirements.

Need a Reliable Medical Power Supply for Your Electrosurgical System?

Designing RF surgical equipment requires more than sufficient output power—it demands stable voltage, reinforced patient isolation, excellent EMC performance, and long-term reliability.

Whether you’re developing a compact electrosurgical unit, a bipolar coagulation system, or a custom RF surgical platform, XJK POWER provides IEC 60601-1 compliant medical power adapters tailored to your OEM requirements.
