Power Solution for Battery-Powered Multi-Parameter Portable Patient Monitor

A medical device manufacturer was developing a new generation of battery-powered portable patient monitors for use in hospital wards, emergency departments, ambulances, and patient transport.

The monitor was designed as a multi-parameter portable patient monitor, capable of continuously measuring ECG, SpO₂, NIBP, respiration, and body temperature. To support clinical mobility, the device integrated a rechargeable lithium battery, allowing uninterrupted monitoring when patients were transferred between departments or during emergency transport.

Project Overview

A medical device manufacturer was developing a battery-powered multi-parameter portable patient monitor designed for bedside monitoring, patient transport, emergency response, and mobile healthcare applications. Unlike conventional bedside monitors that operate continuously from AC power, the portable system required an external medical-grade power adapter capable of supplying stable DC power while simultaneously supporting battery charging.

The project focused on achieving a compact, reliable, and energy-efficient power solution that complied with IEC 60601-1 medical safety standards while ensuring uninterrupted monitoring during transitions between AC power and battery operation.

Item	Description
Application	Battery-Powered Multi-Parameter Portable Patient Monitor
Device Functions	ECG, SpO₂, NIBP, Respiration, Temperature Monitoring
Typical Display	10.1-inch LCD Touchscreen
Power Source	AC Mains + Internal Lithium Battery
External Power Adapter	60W Medical Power Adapter
Adapter Output	19V DC / 3.16A
Battery Charging	Supported through Internal Charging Circuit
Safety Standard	IEC 60601-1, 2×MOPP
Operating Mode	AC Mode / Battery Mode Automatic Switching
Key Requirements	High Efficiency, Low Leakage Current, Compact Size, Stable Output

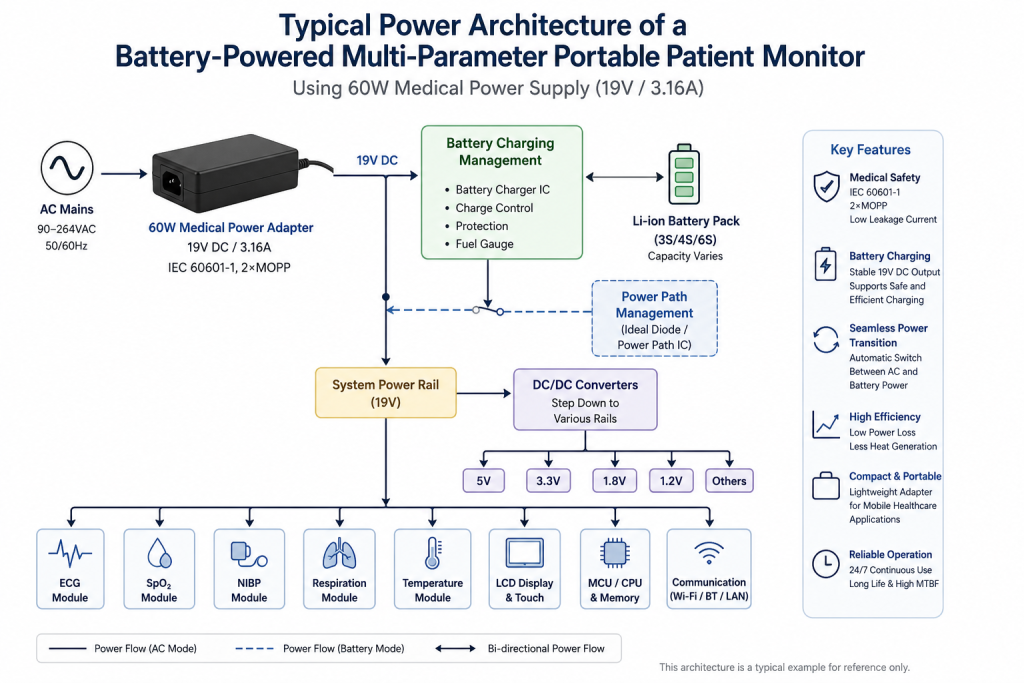

Typical Power Architecture

Customer Challenge

The customer required a reliable external power solution for a portable patient monitoring system capable of operating in multiple clinical environments, including hospital wards, emergency departments, and patient transport.

The engineering team faced several critical design challenges:

Deliver stable 19V DC power for both system operation and battery charging.
Maintain uninterrupted monitoring during transitions between AC power and battery operation.
Reduce adapter size and weight to improve portability for healthcare professionals.
Minimize heat generation during continuous operation.
Meet IEC 60601-1 medical safety requirements, including 2×MOPP isolation and low leakage current.
Improve overall system reliability through high conversion efficiency and long service life.

XJK Engineering Solution

XJK Power recommended a 60W medical-grade AC/DC power adapter specifically designed for portable medical devices.

The solution provides a regulated 19V/3.16A DC output, supplying stable power to the monitor’s internal charging circuit while supporting continuous operation during battery charging.

Key features include:

IEC 60601-1 certified medical safety design
2×MOPP isolation protection
Low leakage current for patient safety
High-efficiency power conversion
Compact desktop design for easy transportation
Universal 90–264VAC input
Customizable DC connector and cable length
Reliable 24/7 continuous operation

How We Develop a Custom Power Supply

Our engineering process helps device manufacturers move efficiently from requirement definition to production-ready power solutions.

Step1
Requirement
Review

Review voltage, current, connector, plug type, installation environment, and medical device requirements.

Step2
Engineering
Evaluation

Electrical feasibility assessment, connector matching, and product configuration planning.

Step3
Prototype
Development

Prototype recommendation or customized sample preparation based on project requirements.

Step4
Compliance &
Validation

Review safety expectations, EMC considerations, and application-specific requirements.

Step5
Sample
Approval

Functional verification and customer-side evaluation before production.

Step6
Production &
Delivery

OEM production support for customized healthcare power solutions.

Technical Design Considerations

Instead of simply supplying power, the external medical adapter plays an essential role in the overall power architecture of a battery-powered patient monitor. Several engineering considerations must be addressed during system design.

1. Stable Power for Battery Charging

The external adapter serves as the primary AC-to-DC power source, providing a stable 19V output to the internal battery charging circuit. Consistent voltage regulation and low ripple help improve charging efficiency while protecting battery lifespan.

2. Continuous AC and Battery Operation

Portable patient monitors must continue monitoring patients even when AC power is disconnected. The adapter should work seamlessly with the system’s power path management to enable automatic switching between external power and the internal battery without interrupting device operation.

3. Medical Safety Compliance

Because patient monitors are connected directly or indirectly to patients, the external power supply must comply with IEC 60601-1. Features such as 2×MOPP isolation and low leakage current are essential for ensuring electrical safety in clinical environments.

4. High Efficiency and Thermal Performance

Portable monitors often remain connected to external power for extended periods while simultaneously charging the battery. A high-efficiency adapter reduces heat generation, improves reliability, and contributes to longer service life for both the power supply and the medical device.

5. Compact and Lightweight Design

Healthcare professionals frequently move portable monitors between patient rooms, emergency departments, and ambulances. A compact adapter minimizes carrying weight and simplifies deployment without compromising electrical performance.

6. Long-Term Reliability

Portable monitoring equipment is expected to operate continuously in demanding clinical environments. Selecting a medical-grade adapter with proven reliability and long operational life helps reduce maintenance requirements and supports uninterrupted patient care.

Project Result

The proposed power solution enables the portable patient monitor to operate reliably in both stationary and mobile healthcare environments.

By combining high efficiency, compact size, and medical-grade safety protection, the external adapter supplies stable DC power for continuous monitoring while supporting safe battery charging through the internal charging management system.

The result is a dependable power solution suitable for portable patient monitoring applications requiring high reliability, patient safety, and long-term operational stability.
