24V 5A Medical Adapter for Volumetric Infusion Pump OEM Applications

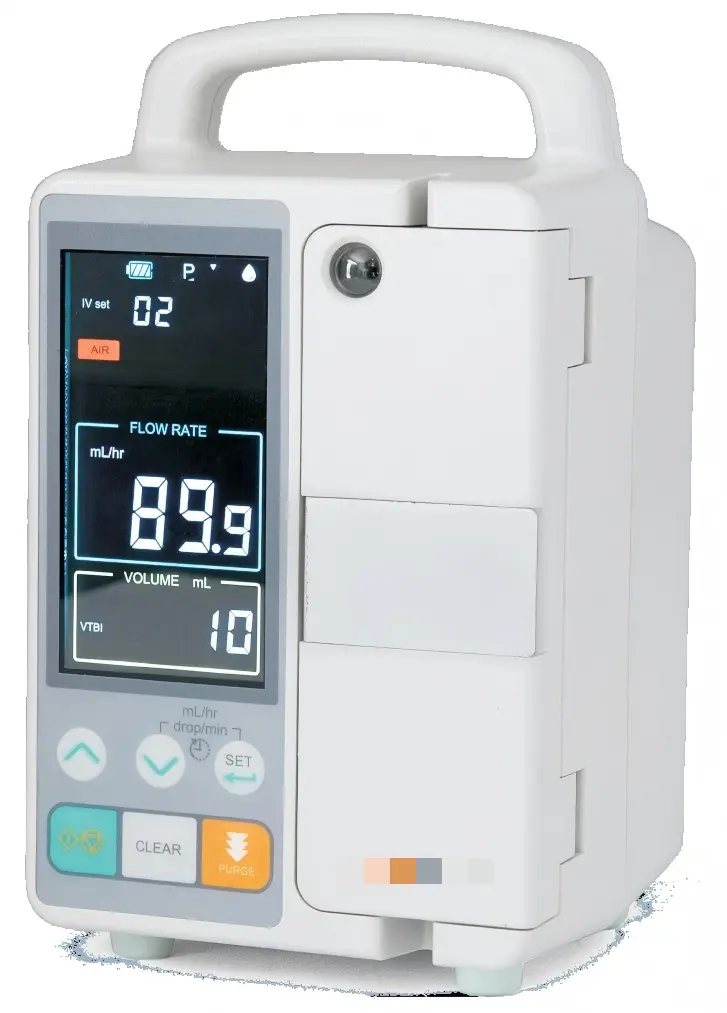

Volumetric infusion pumps are widely used in hospitals, intensive care units, emergency departments, and outpatient clinics to deliver fluids and medications at a controlled flow rate. Because these devices often operate continuously for extended periods, the external power supply must provide stable output, medical-grade safety, and long-term reliability.

The XJK 24V 5A Medical Power Adapter is designed to support OEM infusion pump manufacturers by delivering a regulated 24V DC output with IEC 60601-1 compliant safety protection. The adapter provides consistent power for the pump drive system, control electronics, display module, communication interfaces, and battery charging circuit, helping ensure reliable operation during clinical use.

Project Overview

Many volumetric infusion pumps require a stable and medically compliant external power supply to ensure continuous and accurate drug delivery in hospitals and clinical environments. This application demonstrates how the XJK 24V 5A 120W Medical Power Adapter provides reliable power for OEM infusion pump manufacturers while meeting IEC 60601-1 medical safety requirements. Designed for continuous operation, the adapter offers high efficiency, low leakage current, and 2×MOPP isolation, making it suitable for integration into professional medical systems.

Item	Details
Application	Volumetric Infusion Pump
Power Supply	XJK 24V 5A Medical Power Adapter
Output	24V DC / 5A
Rated Power	120W
Input Voltage	100–240VAC
Safety Standard	IEC 60601-1
Protection	2×MOPP
Leakage Current	Medical Grade
Cooling	Natural Convection
Customization	Connector, Cable, Label, Housing
OEM / ODM	Supported

Customer Challenge

An OEM manufacturer developing a new generation of volumetric infusion pumps required a reliable external power solution that could support long-term operation in hospital environments while complying with international medical safety standards.

The engineering team identified several key requirements:

Stable 24V DC output under continuous operation
Compliance with IEC 60601-1 medical safety requirements
Low leakage current for patient-connected equipment
Compact desktop enclosure suitable for medical environments
Flexible customization for DC connectors and cable assemblies
High efficiency to minimize heat generation during long operating hours

XJK Engineering Solution

XJK recommended the 24V 5A 120W Medical Power Adapter as the external power solution for the infusion pump platform.

The adapter provides stable output performance throughout continuous operation while incorporating reinforced insulation that meets 2×MOPP protection requirements. High conversion efficiency helps reduce operating temperature and improves long-term reliability.

To simplify system integration, customized DC connectors, output cables, product labeling, and regional AC power cords can all be supplied according to OEM project requirements.

How We Develop a Custom Power Supply

Our engineering process helps device manufacturers move efficiently from requirement definition to production-ready power solutions.

Step1
Requirement
Review

Review voltage, current, connector, plug type, installation environment, and medical device requirements.

Step2
Engineering
Evaluation

Electrical feasibility assessment, connector matching, and product configuration planning.

Step3
Prototype
Development

Prototype recommendation or customized sample preparation based on project requirements.

Step4
Compliance &
Validation

Review safety expectations, EMC considerations, and application-specific requirements.

Step5
Sample
Approval

Functional verification and customer-side evaluation before production.

Step6
Production &
Delivery

OEM production support for customized healthcare power solutions.

Technical Design Considerations

Continuous Output Stability

Volumetric infusion pumps often operate continuously for extended periods. Stable voltage regulation helps maintain consistent system performance throughout long treatment cycles.

Medical Electrical Safety

The adapter is designed to comply with IEC 60601-1 medical safety requirements, including 2×MOPP isolation and low leakage current, supporting safe integration into patient-care environments.

Thermal Performance

High conversion efficiency reduces internal heat generation, improving long-term reliability while maintaining quiet fanless operation.

OEM Integration Flexibility

Different infusion pump platforms may require different DC connectors, cable lengths, enclosure labeling, and regional AC power cords. OEM customization simplifies product integration and manufacturing.

Project Result

The XJK 24V 5A Medical Power Adapter successfully satisfied the electrical and safety requirements of the OEM infusion pump platform.

The solution provided:

Stable power delivery during continuous operation
Simplified integration into the customer’s medical device platform
Compliance with IEC 60601-1 medical safety requirements
Flexible OEM customization for future product variants
Reliable long-term performance suitable for hospital applications

FAQ

Why is a 24V power adapter commonly used in volumetric infusion pumps?

Some OEM volumetric infusion pump platforms are designed around a 24V DC input because it provides sufficient power for pumps, displays, control electronics, and battery charging circuits. Actual input requirements vary by manufacturer and product design.

Does this adapter comply with IEC 60601-1?

Yes. The adapter is designed to comply with IEC 60601-1 medical safety requirements and incorporates 2×MOPP isolation for medical applications.

Can the output connector be customized?

Yes. Various DC connector types, cable lengths, and wiring configurations can be customized for OEM projects.

Is OEM branding available?

Yes. We support custom labels, housing colors, packaging, and private labeling for medical device manufacturers.

Can this power adapter be used for other medical equipment?

Yes. Besides volumetric infusion pumps, it can also be integrated into medical carts, laboratory instruments, portable diagnostic equipment, and other devices requiring a regulated 24V DC power source.

Need a Customized Medical Power Solution for Your Device?

Whether you are developing infusion pumps, patient monitors, portable diagnostic equipment, or other medical devices, XJK provides OEM and ODM medical power adapters designed to meet international safety standards.

Contact our engineering team to discuss your project requirements and receive customized power supply recommendations.
