Case Study: 120W Power Adapter for LED Display and Digital Signage Systems

LED displays and digital signage systems have become fundamental infrastructure in commercial advertising, transportation hubs, retail environments, and public information systems across the globe. As these systems often operate continuously — sometimes running 24 hours a day, 7 days a week — they require a highly stable and efficient LED display power supply to ensure consistent performance and reliable operation under demanding conditions.

In this comprehensive case study, we explore how XJK Power — a specialized LED display power supply supplier — delivered a robust, efficient, and reliable power solution specifically designed for LED display and digital signage applications operating in challenging commercial environments.

If you are looking for a dependable LED display power supply supplier for your LED display, digital signage, or commercial installation project, XJK Power offers proven solutions backed by extensive application experience and comprehensive customization support to meet your specific technical requirements.

Contact us today to discuss your project requirements or request a quote.

Project Overview

A digital signage system integrator specializing in commercial display solutions required a reliable external AC/DC power adapter for large-scale LED display deployments across multiple retail locations.

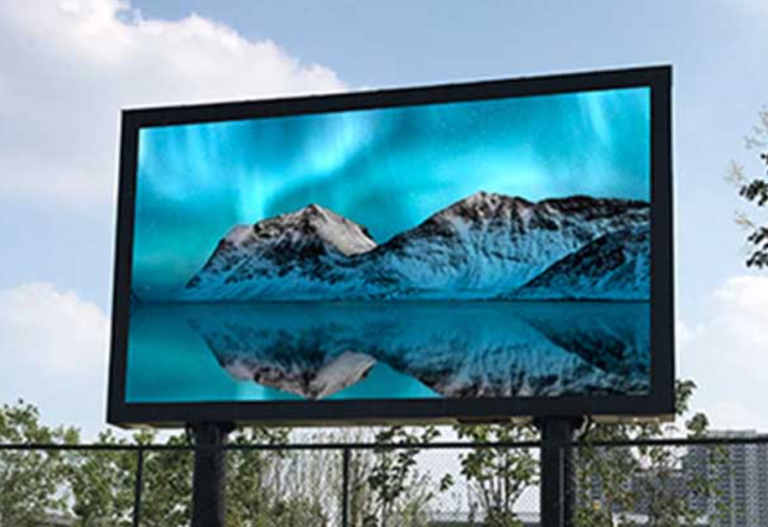

The systems were installed in shopping malls and semi-outdoor environments where continuous operation, stable brightness performance, and minimal maintenance were critical requirements.

The customer’s existing power solutions experienced issues including voltage instability, excessive heat generation, and unexpected shutdowns, affecting display performance and increasing maintenance costs.

XJK Power provided a customized 120W power adapter platform optimized for LED display and digital signage applications, delivering stable DC output, improved thermal performance, and reliable 24/7 operation.

Parameter Requirement
Application LED Display & Digital Signage Systems
Customer Type Display System Integrator
Installation Environment Retail / Semi-outdoor Locations
Operating Mode 24/7 Continuous Operation
Product Type External AC/DC Power Adapter
Output Power 120W
Output Options 24V 5A / 48V 2.5A
Input Voltage 100-240V AC
Efficiency Requirement ≥88%
Protection OVP / OCP / SCP
Certification CE / FCC / UL

Typical Power Architecture

Customer Challenge

The customer faced several power-related challenges during commercial LED display deployment.

1. Unstable Power Affecting Display Performance

Previous power solutions caused:

  • Screen flickering
  • Color inconsistency
  • Display interruptions

Stable DC power was required to maintain consistent visual performance across multiple display units.

2. Thermal Issues in Enclosed Installations

Many digital signage systems were installed in compact enclosures with limited ventilation.

The power adapter needed to minimize heat generation and maintain reliable operation under continuous load conditions.

3. 24/7 Reliability Requirement

Unlike consumer electronics, commercial signage systems often operate continuously.

The power solution needed to support:

  • Long operating cycles
  • Stable output performance
  • Reduced maintenance frequency

4. Flexible Deployment Requirements

The customer required a power platform suitable for different display configurations and global installation environments.

Requirements included:

  • Universal AC input
  • Multiple output voltage options
  • International certifications

XJK Engineering Solution

Based on the customer’s application requirements, XJK Power developed a customized 120W external AC/DC power adapter solution designed specifically for commercial LED display applications.

Electrical Design

The solution included:

  • 100-240V AC universal input
  • 120W continuous power output
  • 24V 5A / 48V 2.5A output options
  • Stable voltage regulation
  • Low ripple and noise performance

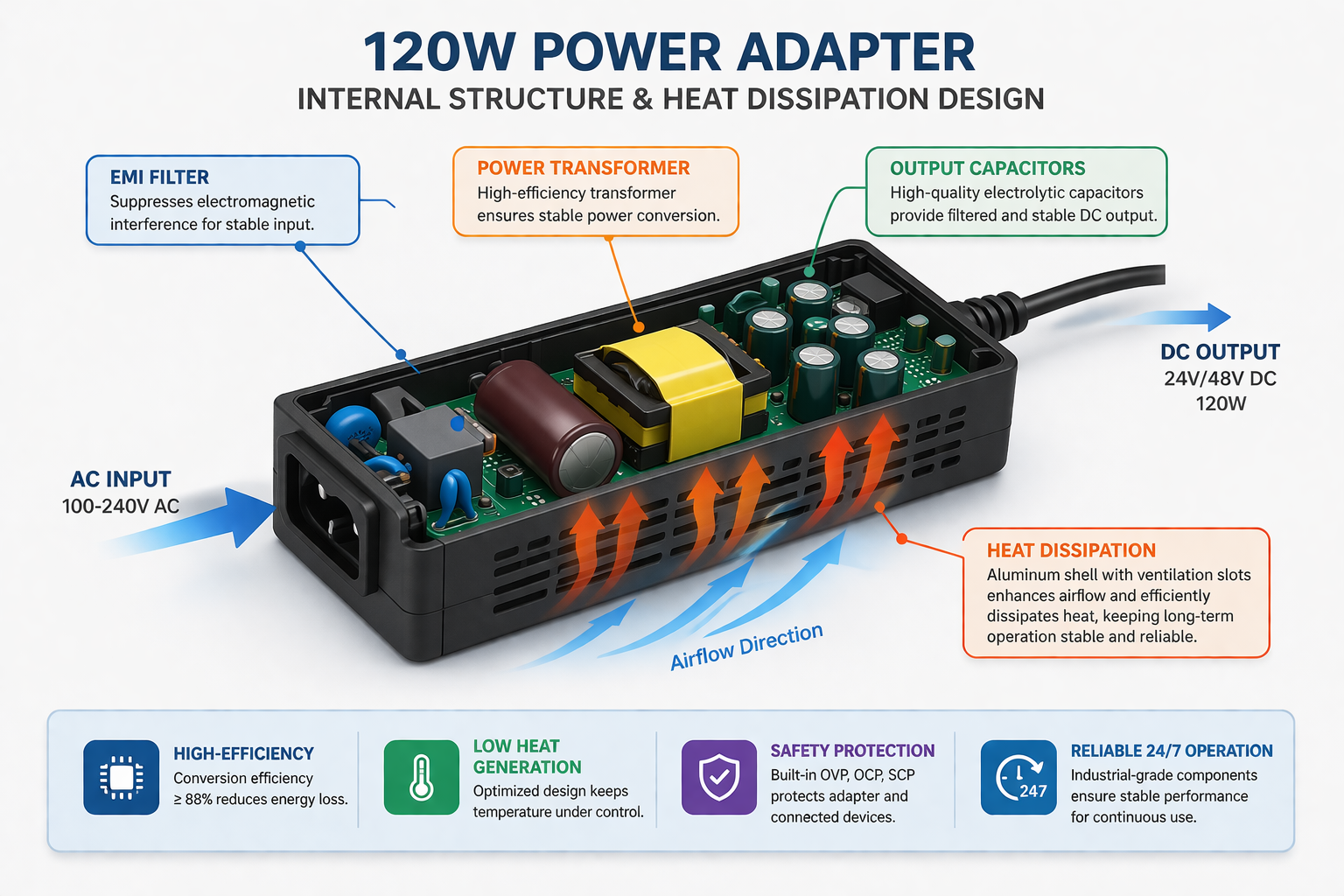

Thermal Optimization

To support continuous operation in enclosed environments:

  • High-efficiency power conversion design
  • Reduced power loss
  • Lower heat generation
  • Optimized thermal performance

Reliability Protection

The adapter integrated:

  • Over Voltage Protection (OVP)
  • Over Current Protection (OCP)
  • Short Circuit Protection (SCP)

These protections help prevent equipment damage caused by abnormal operating conditions.

System Integration Advantages

The external adapter design helped the customer:

  • Reduce internal heat accumulation
  • Simplify system installation
  • Improve maintenance accessibility
  • Support global deployment

How We Develop a Custom Power Supply

Our engineering process helps  device manufacturers move efficiently from requirement definition to production-ready power solutions.

Step1
Requirement
Review

Review voltage, current, connector, plug type, installation environment, and medical device requirements.

Step2
Engineering
Evaluation

Electrical feasibility assessment, connector matching, and product configuration planning.

Step3
Prototype
Development

Prototype recommendation or customized sample preparation based on project requirements.

Step4
Compliance &
Validation

Review safety expectations, EMC considerations, and application-specific requirements.

Step5
Sample
Approval

Functional verification and customer-side evaluation before production.

Step6
Production &
Delivery

OEM production support for customized healthcare power solutions.

Technical Design Considerations

1. Why 120W Power Rating Was Selected

LED display systems typically require stable power delivery for:

  • LED modules
  • Display controllers
  • Communication modules

The 120W power range provides sufficient power margin while maintaining compact size and thermal efficiency.

2. Efficiency and Heat Management

For commercial signage systems operating continuously, efficiency directly impacts:

  • Energy consumption
  • Heat generation
  • Component lifetime

The high-efficiency design reduces unnecessary power loss and improves long-term reliability.

3. Stable Output Performance

LED displays are sensitive to power fluctuations.

A regulated DC output helps prevent:

  • Flickering
  • Brightness variation
  • Display instability

4. Protection Design

Commercial installations require protection against unpredictable electrical conditions.

The integrated protection features improve:

  • System safety
  • Equipment protection
  • Operational continuity

Project Result

After deployment across multiple retail and semi-outdoor locations, the customized 120W power adapter solution achieved significant improvements:

✔ Stable 24/7 operation across installed display systems

✔ Eliminated previous flickering and display inconsistency issues

✔ Reduced maintenance requirements and service costs

✔ Improved overall system reliability and uptime

✔ Supported expansion of the customer’s commercial display deployment

Recommended Products

OEM Customizable 120W Power Adapter – Multi-Voltage

The OEM Customizable 120W Power Adapter is designed to provide flexible power solutions for industrial, medical, and embedded devices. It supports 12V, 20V, or 24V output with adjustable current up to 10A
Learn More →

120W Power Adapter 20V 6A

With an output of 20V at 6A, this adapter ensures consistent performance for devices such as industrial computers, HMI panels, PLC controllers, and embedded electronics.
Learn More →

120W Power Adapter for Industrial

This 120W power adapter is a high-efficiency AC to DC power solution designed for industrial tablets, medical devices, and other professional electronic equipment requiring stable and continuous power delivery.
Learn More →
Learn More →

FAQ

1. Why do LED display systems require a dedicated power adapter?

LED displays often operate continuously and require stable DC power to maintain brightness consistency and prevent flickering or system interruptions.

2. Is a 120W power adapter suitable for digital signage applications?

Yes. A 120W adapter provides sufficient power capacity for many commercial LED displays, controllers, and integrated signage systems.

3. What output voltage options are available for LED display power adapters?

Common configurations include:

  • 24V DC
  • 48V DC

The output can be customized according to system requirements.

4. Can XJK Power customize adapters for specific LED display systems?

Yes. XJK Power provides OEM/ODM customization including voltage, current, connectors, cable specifications, and mechanical requirements.

5. Are these power adapters suitable for outdoor applications?

The suitability depends on enclosure design and environmental protection requirements. For semi-outdoor applications, XJK can optimize thermal performance and reliability according to deployment conditions.

Need a Reliable Power Solution for Your LED Display Project?

Selecting the right power adapter is critical for display stability, energy efficiency, and long-term system reliability.

XJK Power provides customized 120W AC/DC power solutions for LED displays, digital signage systems, and commercial electronic equipment.

From specification review and prototype development to mass production, our engineering team supports your project requirements.
