Case Study: 24V 120W Power Adapter for Fanless Rugged Computer (MPC-3800 Series)

A rugged computer manufacturer required a reliable external power solution for their fanless industrial computer system (MPC-3800 series) used in harsh environments.

The system supports wide DC input (9–48V) and is typically deployed in:

  • Industrial automation
  • Transportation systems
  • Outdoor monitoring equipment

To ensure stable operation, the customer selected a 24V DC input architecture, requiring a high-quality external AC/DC adapter.

Learn more about our industrial power supply solutions.

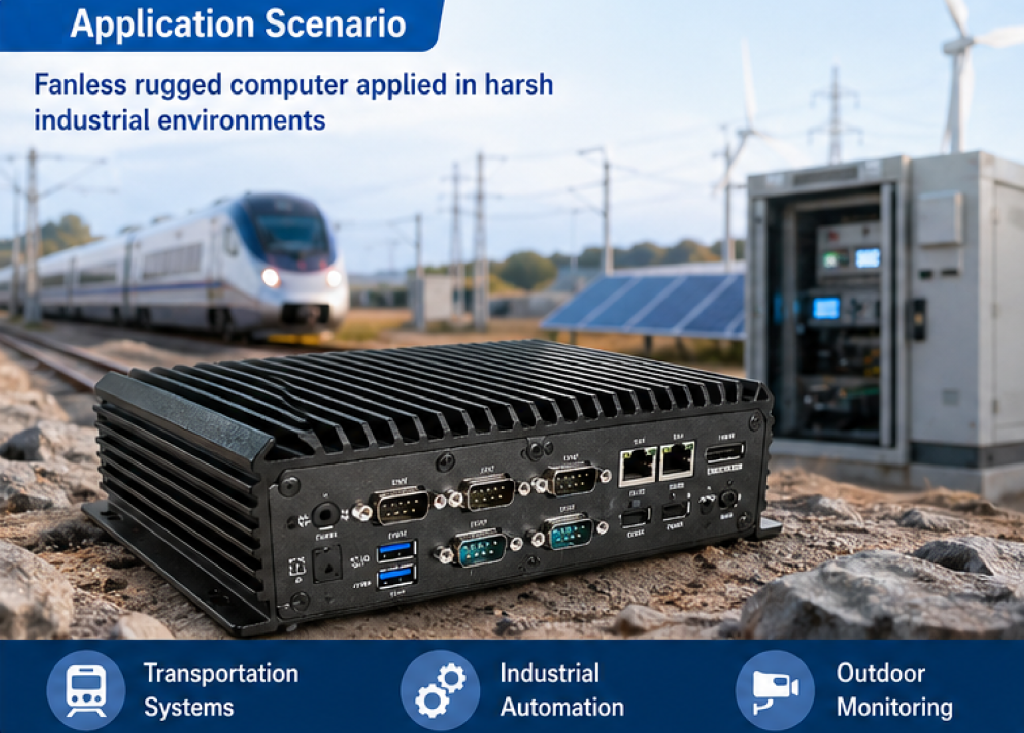

Fanless rugged computer used in outdoor industrial inspection system

Project Overview

For this project, XJK Power provided a customized 24V 120W external AC/DC power adapter for a fanless rugged computer platform.

The solution was configured with a regulated 24V DC output at 5A, combined with a DC plug and customized cable assembly to match the computer’s terminal block power input.

The design focused on three key requirements: stable power delivery during continuous operation, efficient thermal performance, and convenient integration with the computer’s existing power interface.

By matching the adapter’s electrical specifications and output connection to the equipment requirements, the solution provided a practical power configuration for industrial computing applications.

Parameter Specification
Application Fanless Rugged Industrial Computer
Equipment Platform MPC-3800 Series
Power Solution External AC/DC Power Adapter
AC Input Voltage 100–240V AC
DC Output Voltage 24V DC
Output Current 5A
Rated Power 120W
Power Input Type AC Mains
Output Connection DC Plug with Customized Cable Assembly
Computer Input Interface Terminal Block
Operating Mode Continuous Operation
Target Applications Industrial Automation, Transportation, Outdoor Monitoring
Key Design Requirements Output Stability, Thermal Efficiency, Low Ripple, Interface Compatibility

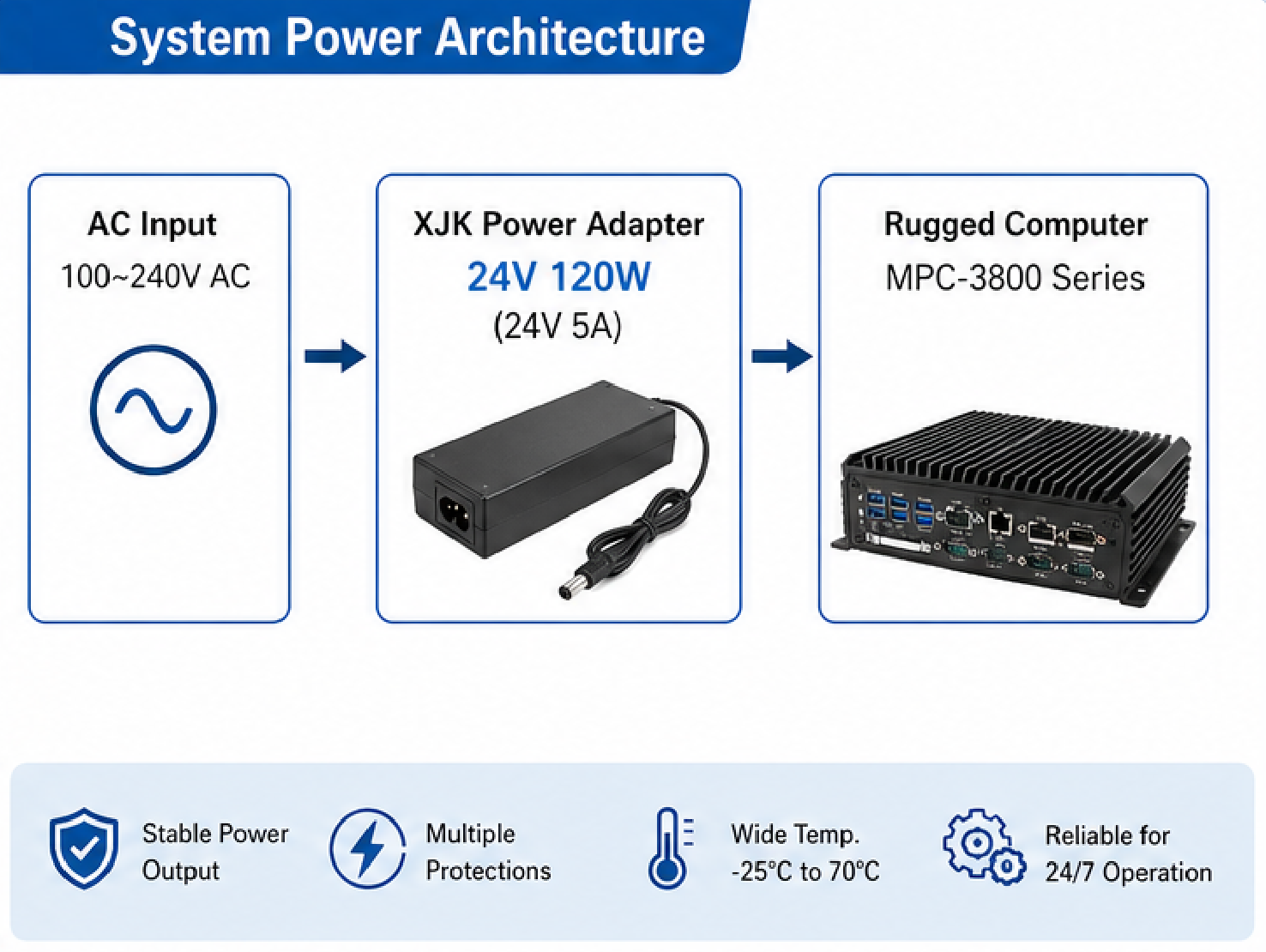

Typical Power Architecture

The power architecture uses an external AC/DC adapter to convert 100–240V AC mains input into a regulated 24V DC output for the fanless rugged computer.

The 24V 5A power adapter connects to the computer through a customized DC plug and cable assembly designed to match its terminal block input. This configuration provides a straightforward external power connection while supporting the computer’s internal processing, storage, communication, and I/O functions.

Customer Challenge

1. Requirement for Stable 24V Power Delivery

Although the rugged computer supports a wide DC input range (9–48V), the customer required a dedicated regulated power source to ensure stable system operation.

An unstable power supply could result in:

  • Unexpected system reboot
  • Data interruption
  • Hardware malfunction
  • Reduced system reliability

Therefore, a regulated 24V DC output was required to maintain consistent performance.


2. Thermal Management for Fanless Computer Design

The computer adopts a fanless thermal architecture, relying on passive cooling instead of active airflow.

This creates additional requirements for the external power adapter:

  • High conversion efficiency
  • Reduced heat generation
  • Stable operation under continuous load

Excessive heat from the power supply could negatively affect the overall system reliability.


3. Low Ripple and Noise Requirement

The rugged computer integrates multiple sensitive electronic components, including:

  • CPU processing modules
  • Communication interfaces
  • Storage devices
  • Industrial I/O modules

Electrical noise from the power source could affect system stability and communication performance.

The customer required:

  • Low output ripple
  • Clean DC power
  • Good EMI performance

4. Flexible Power Interface Integration

Traditional industrial computers commonly use terminal block power input.

However, terminal wiring may introduce challenges during deployment:

  • Longer installation time
  • Incorrect wiring risks
  • Additional maintenance requirements

The customer preferred a more convenient external adapter solution using a standard DC plug.

XJK Engineering Solution

To address these requirements, XJK Power developed a customized 24V 5A 120W industrial AC/DC power adapter solution for the rugged computer platform.

The solution included:

24V 120W Regulated Output

Providing stable power delivery for:

  • Rugged computers
  • Fanless industrial PCs
  • Edge computing systems
  • Industrial controllers

Customized Cable Interface

The adapter uses:

  • Standard DC plug output
  • Customized cable assembly
  • Compatible connection with terminal block input

This design provides:

✔ Plug-and-play installation
✔ Reduced wiring complexity
✔ Faster system deployment


Industrial Reliability Design

The adapter incorporates:

  • Over Voltage Protection (OVP)
  • Over Current Protection (OCP)
  • Short Circuit Protection (SCP)

to improve system safety and reliability.


High Efficiency & Low Noise Performance

The power supply was optimized for:

  • Continuous operation
  • Reduced thermal stress
  • Stable CPU and communication performance

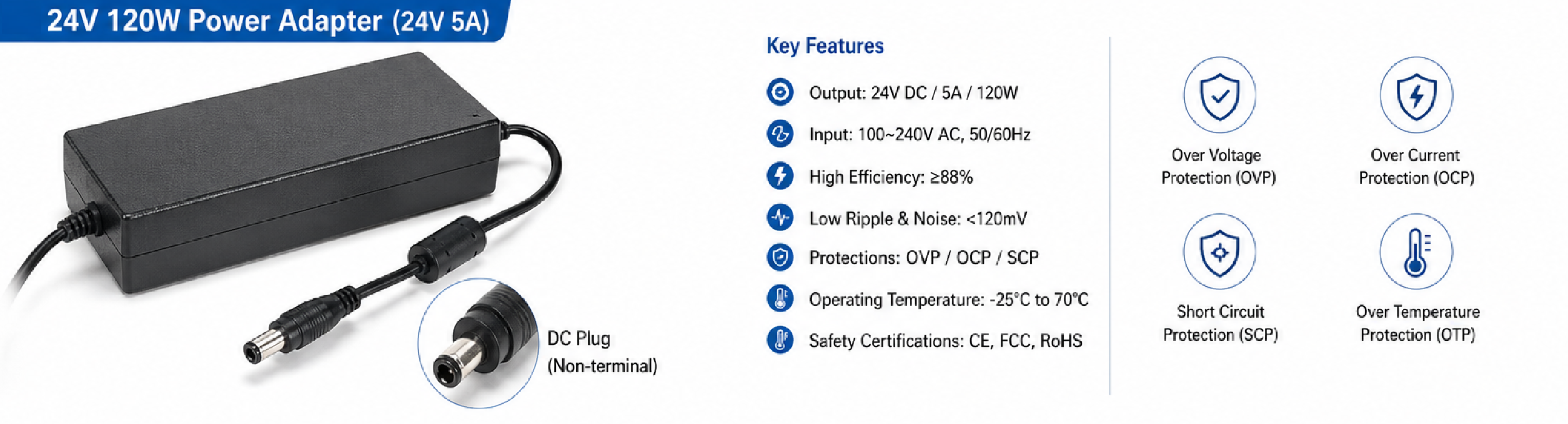

24V 5A 120W power adapter for rugged industrial computer
24V 5A 120W power adapter for rugged industrial computer

How We Develop a Custom Power Supply

Our engineering process helps  device manufacturers move efficiently from requirement definition to production-ready power solutions.

Step1
Requirement
Review

Review voltage, current, connector, plug type, installation environment, and device requirements.

Step2
Engineering
Evaluation

Electrical feasibility assessment, connector matching, and product configuration planning.

Step3
Prototype
Development

Prototype recommendation or customized sample preparation based on project requirements.

Step4
Compliance &
Validation

Review safety expectations, EMC considerations, and application-specific requirements.

Step5
Sample
Approval

Functional verification and customer-side evaluation before production.

Step6
Production &
Delivery

OEM production support for customized power solutions.

Technical Design Considerations

Technical Item Design Consideration
Output Voltage Stability Maintained regulated 24V DC output under dynamic system loads
Power Rating Selection 120W output provided sufficient power margin for rugged computing applications
Thermal Performance High efficiency design minimized heat generation during continuous operation
Ripple & Noise Control Optimized circuit design reduced output interference to sensitive electronics
EMI Performance Improved noise immunity for industrial environments
Protection Design Integrated OVP, OCP, SCP protection functions
Connector Compatibility Customized cable enabled DC plug connection with terminal block input
Mechanical Reliability Reinforced enclosure and cable strain relief improved durability

Project Result

The customized 24V 120W power adapter provided a practical external power solution for the fanless rugged computer platform. By matching the electrical output, power rating, and cable interface to the equipment requirements, the solution addressed several important aspects of industrial computer power integration.

1. Stable 24V DC Power Supply

The regulated 24V DC output at 5A provides a dedicated power source for the rugged computer system.

The 120W power rating was selected to meet the equipment’s power requirements while providing an appropriate power capacity for continuous operation.

2. Simplified Power Connection

The customized DC plug and cable assembly was designed to match the computer’s terminal block input interface.

This configuration helps simplify power connection during equipment installation and reduces the need for additional cable adaptation.

3. Thermal and Electrical Performance Considerations

The power solution was selected with attention to conversion efficiency, output ripple, and heat generation.

These factors are particularly important for fanless computing systems, where passive cooling and continuous operation place additional demands on overall system thermal management.

4. Flexible OEM Integration

The external AC/DC adapter configuration allows the computer manufacturer to integrate a dedicated power solution without redesigning the computer’s internal power architecture.

Output specifications, connector configuration, cable length, and other interface requirements can also be evaluated for future equipment variations.

Conclusion

Reliable power delivery is an essential part of fanless rugged computer design. A suitable external power adapter must provide the required output capacity while meeting the equipment’s electrical, thermal, and connection requirements.

Through this customized 24V 5A 120W AC/DC power adapter solution, XJK Power demonstrates its capability to support rugged computers, industrial PCs, and embedded computing equipment with application-oriented power solutions.

For equipment manufacturers developing industrial computing products, XJK provides OEM/ODM support for customized output specifications, connectors, cable assemblies, and power adapter configurations.
