72W industrial power adapter

The 72W Industrial Power Adapter delivers stable and efficient DC power for industrial automation, communication equipment, LED systems, security devices, and embedded electronics. Designed for continuous operation, it features high efficiency, comprehensive protection, and global safety compliance while supporting OEM/ODM customization.

Industrial Grade Reliability Design

Wide Input 90–264VAC

OEM & ODM Available

Full Protection Circuit Design

Download Datasheet
Request a Quote

Technical Specification

Input Connector/Plug Type

C6, C8, C14, C18

Output Connector

BARREL CONNECTOR

Rated Power

72W

Output Voltage

24V

Output Current

3V

Model

XJK72W-2403000

Safety Standards

IEC/EN 60601

Product Overview

The 72W Industrial Power Adapter is designed to provide dependable power for industrial and commercial equipment requiring stable DC output. Built with high-quality components and advanced power conversion technology, it offers excellent efficiency, low ripple, and comprehensive protection against overload, overvoltage, overcurrent, and short circuits.

Available in multiple output voltages including 12V, 24V, and 48V, this power adapter is suitable for industrial control systems, communication equipment, access control, LED lighting, POS terminals, and embedded devices. OEM and ODM customization is available for output specifications, connectors, plugs, cable length, and branding.

Key Features

Industrial-grade reliability design

Wide temperature operation capability

High efficiency up to 92%

Low ripple & stable output

Full protection (OVP/OCP/
SCP/OTP)

24/7 continuous operation support

Compact & robust enclosure design

OEM/ODM customization available

Electrical Performance

Item Specification
Product Type Industrial AC/DC Power Adapter
Rated Power 72W
Input Voltage 100–240VAC, 50/60Hz
Output Voltage 12V / 24V / 48V DC (Optional)
Output Current 6A / 3A / 1.5A
Efficiency Up to 90%
No-load Power <0.15W
Protection OVP / OCP / SCP / OTP
Operating Temperature 0°C to +40°C
Storage Temperature -20°C to +85°C
Safety Standard IEC/EN 62368-1
EMC Compliance EN55032 Class B
Certifications CE, UL, CB, UKCA, RoHS (model dependent)
Connector DC Plug (Custom Available)
Plug Type US / EU / UK / AU / IEC C6 / C8 / C14
Warranty 3 Years
OEM / ODM Supported

Notes：

  • All parameters are measured under full load and 25°C ambient temperature.
  • Efficiency may vary depending on input voltage and load conditions.
  • Ripple & noise is measured at 20MHz bandwidth with a 0.1μF + 10μF parallel test setup.
  • Derating may be required at higher ambient temperatures or restricted ventilation conditions.

Typical Applications​

  • Industrial Control Systems
  • PLC & HMI Panels
  • Industrial Sensors
  • Communication Equipment
  • Security & Surveillance Systems
  • LED Display & Lighting
  • POS Terminals
  • Barcode & Label Printers
  • Embedded Computing Devices
  • Network Equipment

Certification / Compliance

Safety Certifications

  • UL / ETL / CE / CB

International Standards

  • IEC/EN 62368-1 (Audio/Video, IT & Industrial Equipment Safety)

EMC Compliance

  • EN 55032 Class B
  • EN 55035

Energy Efficiency

  • DOE Level VI / ERP Stage VI

Environmental Compliance

    • RoHS / REACH compliant

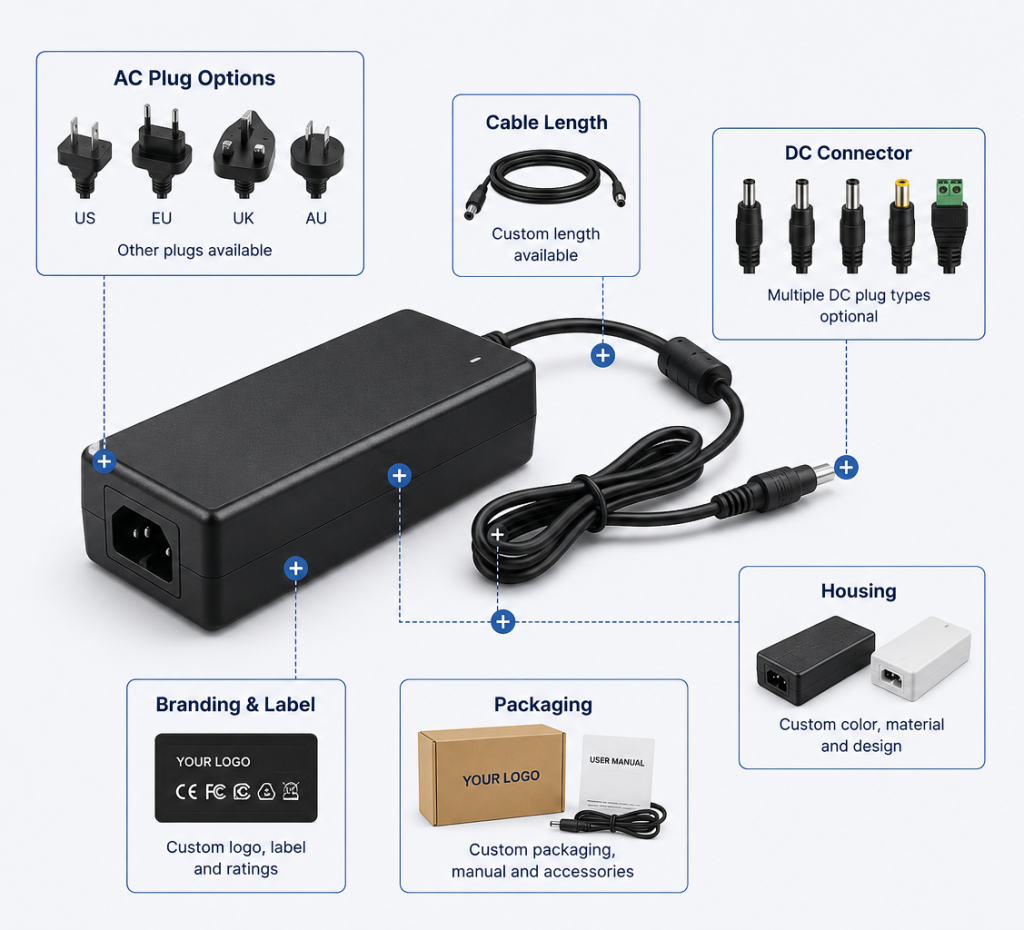

OEM/ODM CUSTOMIZATION

Tailored Power Adapter Solutions for Your Industrial Equipment

Output Specifications

Customize output voltage, current, and power to match your equipment requirements.

Connectors & Cables

Choose from various DC connectors, cable lengths, and AC inlet options.

Certification Support

Assist with CE, CB, UL, UKCA, RoHS, and other certification requirements based on your target market.

Mechanical Customization

Custom housing colors, dimensions, mounting options, and connector placement.

Branding & Packaging

Private label services including logo printing, labels, packaging, and user manuals.

Real-world Use Cases

FAQ

1. What output voltages are available for the 72W industrial power adapter?

Standard versions include 12V, 24V, and 48V DC. Custom output voltages are available for OEM projects.

2. Can the adapter operate continuously in industrial environments?

Yes. It is designed for continuous operation with high efficiency and multiple protection functions for long-term reliability.

3. Which safety certifications are available?

Depending on the model and market requirements, CE, UL, CB, UKCA, and RoHS compliant versions are available.

4. Can I customize the DC connector or cable length?

Yes. We provide customized DC plugs, cable lengths, AC inlets, and regional AC plugs based on customer requirements.

5. What protection features are included?

The adapter includes over-voltage protection (OVP), over-current protection (OCP), short-circuit protection (SCP), and over-temperature protection (OTP).

6. Is OEM or private label service available?

Yes. XJK provides OEM and ODM services including logo printing, customized housing, packaging, output specifications, and connector configurations.
