Home » Products » 180W Industrial AC DC Power Adapter

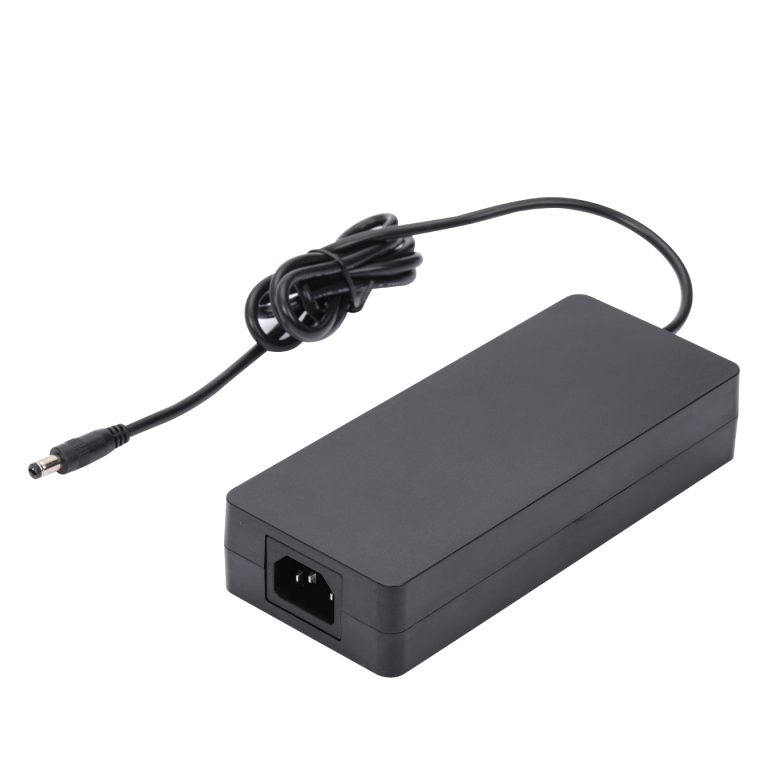

180W Industrial AC DC Power Adapter

High-efficiency 180W industrial-grade AC DC power adapter designed for automation systems, industrial control equipment, communication devices, and OEM applications requiring stable and reliable power output.

Industrial Grade Reliability Design

Wide Input 90–264VAC

OEM & ODM Available

Full Protection Circuit Design

Technical Specification

Input Connector/Plug Type

C6, C8, C14

Output Connector

BARREL CONNECTOR

Rated Power

180W

Output Voltage

3.75A

Output Current

48Vf

Model

XJK180W-4803750

Safety Standards

IEC/EN 60601

Product Overview

The XJK Power 180W industrial AC DC power adapter is designed to deliver stable, efficient, and long-lasting power for a wide range of industrial and OEM applications.

With a universal AC input range of 90–264VAC, this adapter provides reliable DC output performance for industrial automation systems, communication equipment, embedded controllers, LED devices, and other professional electronics.

Built with industrial-grade components, it ensures high efficiency, low ripple, and strong protection features including over-voltage, over-current, short-circuit, and over-temperature protection.

Multiple output voltage options including 12V, 24V, 36V, and 48V are available, along with full OEM/ODM customization for connectors, cables, housing, and branding.

Key Features

Industrial-grade reliability design

Wide temperature operation capability

High efficiency up to 92%

Low ripple & stable output

Full protection (OVP/OCP/
SCP/OTP)

24/7 continuous operation support

Compact & robust enclosure design

OEM/ODM customization available

Electrical Performance

Item	Specification
Output Voltage	48V DC
Output Current	3.75A
Output Power	180W Max
Efficiency	≥ 90% (typical)
Ripple & Noise	≤ 120mVp-p
Line Regulation	±1%
Load Regulation	±3%
Hold-up Time	≥ 10ms
Turn-on Delay	≤ 3s
Protection	OCP / OVP / SCP / OTP
Dielectric Strength	3000VAC (Primary to Secondary)
Isolation Resistance	≥ 100MΩ @500VDC

Notes：

All parameters are measured under full load and 25°C ambient temperature.
Efficiency may vary depending on input voltage and load conditions.
Ripple & noise is measured at 20MHz bandwidth with a 0.1μF + 10μF parallel test setup.
Derating may be required at higher ambient temperatures or restricted ventilation conditions.

Typical Applications

Industrial Automation Systems
PLC Controllers & Industrial PCs
Factory Equipment & Machinery
Communication Equipment
Industrial IoT Devices
Security & Surveillance Systems
LED Display & Digital Signage
Networking & Data Equipment
POS & Retail Systems
Embedded Industrial Electronics

Certification / Compliance

Safety Certifications

UL / ETL / CE / CB

International Standards

IEC/EN 62368-1 (Audio/Video, IT & Industrial Equipment Safety)

EMC Compliance

EN 55032 Class B
EN 55035

Energy Efficiency

DOE Level VI / ERP Stage VI

Environmental Compliance

- RoHS / REACH compliant

OEM/ODM CUSTOMIZATION

Tailored Power Adapter Solutions for Your Industrial Equipment

Output Specifications

Customize output voltage, current, and power to match your equipment requirements.

Connectors & Cables

Choose from various DC connectors, cable lengths, and AC inlet options.

Certification Support

Assist with CE, CB, UL, UKCA, RoHS, and other certification requirements based on your target market.

Mechanical Customization

Custom housing colors, dimensions, mounting options, and connector placement.

Branding & Packaging

Private label services including logo printing, labels, packaging, and user manuals.

Real-world Use Cases

Fanless rugged computer used in outdoor industrial inspection system

Case Study: 24V 120W Power Adapter for Fanless Rugged Computer (MPC-3800 Series)

Case Study: 12V Power Supply for Industrial IoT Gateway and Edge Computing Systems

Power Architecture of a PLC System Using a 120W AC-DC Adapter

Case Study: 120W AC-DC Power Adapter in Siemens S7-1200 PLC Systems

FAQ

1. What is an industrial power adapter?

An industrial power adapter is a high-reliability external power supply designed for continuous operation in industrial environments, offering stable output and strong protection features.

2. What devices can use a 180W industrial power adapter?

It is suitable for industrial automation equipment, PLC systems, industrial PCs, communication devices, LED displays, and embedded systems.

3. What output voltages are available?

Standard options include 12V, 24V, 36V, and 48V. Custom voltage options are available for OEM projects.

4. Can you provide OEM or ODM customization?

Yes, we support full customization including output specifications, connectors, cable length, housing design, and branding.

5. What protection features are included?

Over-voltage protection (OVP), over-current protection (OCP), short-circuit protection (SCP), and over-temperature protection (OTP).

6. Is this power adapter suitable for 24/7 operation?

Yes, it is designed for continuous industrial-grade operation with high reliability and thermal stability.

7. What certifications are available?

UL, CE, FCC, CB, and RoHS compliance are available depending on project requirements.

Need a Custom Solutions?

We provide OEM&ODM customization for output voltage, current , connector, cable length, labeling and packaging .
